par

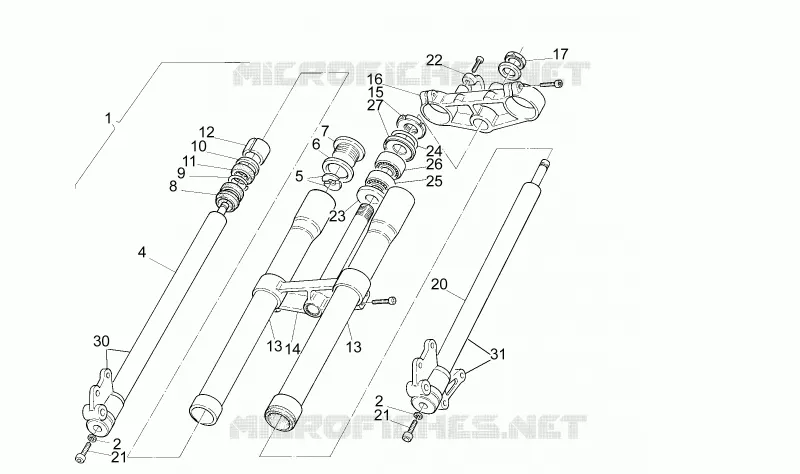

Fourche Av.
1
2
2
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
20
21
21
22
23
24
25
26
27
30
31
1
Front fork
AP8203385
Non disponible
1
Front fork
AP8203487
Non disponible
2
Gasket
AP8123436
Non disponible
2
Seal washer
AP8123206
16,67€ Prix unitaire TTC
4
RH hub
AP8203443
Non disponible
5
Half ring
AP8123212
Non disponible
6
Gasket ring
AP8123211
Non disponible
7
Screw M20x1,5
AP8123210
Non disponible
8
Dust cover
AP8203444
Non disponible
9
Stop ring
AP8203445
17,78€ Prix unitaire TTC
10
Cup
AP8203446
Non disponible
11
Gasket ring
AP8103392
Non disponible
11
Oil seal
AP8103199
26,96€ Prix unitaire TTC
12
Bush
AP8203447
19,48€ Prix unitaire TTC
13
Sleeve cpl.
AP8203448
Non disponible
14
Lower plate
AP8203451
Non disponible
15
Fork lower ring nut
AP8203588
30,77€ Prix unitaire TTC
16
Fork upper plate
AP8203424
149,40€ Prix unitaire TTC
17
Plug
AP8203251
37,87€ Prix unitaire TTC
20
LH hub
AP8203450
Non disponible
21
Screw M10x30
AP8123216
9,80€ Prix unitaire TTC
22
U-bolt
AP8203425
29,14€ Prix unitaire TTC
23
Lower dust cover ring
AP8101271
3,31€ Prix unitaire TTC
24
Spacer
AP8101272
17,11€ Prix unitaire TTC
25
Roller bearing
AP8110024
83,23€ Prix unitaire TTC
26
Ball bearing
AP8110025
32,95€ Prix unitaire TTC
27
Dust cover
AP8120211
16,68€ Prix unitaire TTC
30
Hub+RH fork leg
AP8203811
Non disponible
31
Hub+LH fork leg
AP8203810
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
