par

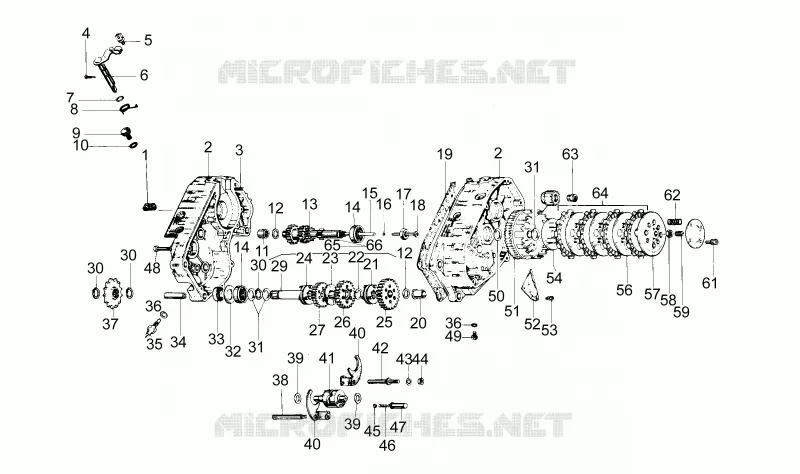

Carter
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
29
30
30
30
31
31
32
33
34
35
36
36
37
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
56
57
58
59
61
62
63
64
65
66
1
Rubber spacer
AP8501853
Non disponible
2
Crankcase assy
AP8509927
Non disponible
3
Screw M6x30
AP8502566
3,40€ Prix unitaire TTC
4
Special cap screw M4
AP8502537
Non disponible
5
Gear cpl.
AP8502999
Non disponible
6
Clutch lever
AP8509194
Non disponible
7
O-ring D7,65x1,78
AP8502655
Non disponible
8
Spring
AP8502358
Non disponible
9
Oil filler plug
AP8501876
Non disponible
10
Plug gasket
AP8502713
Non disponible
11
Roller cage
AP8502608
Non disponible
12
Blue steel washer D13,2x20
AP8222337
Non disponible
13
Primary gear shaft
AP8509900
Non disponible
14
Bearing D15x35x11
AP8502624
Non disponible
15
Push rod d.5x79
AP8502794
Non disponible
16
Ball 3/16"
AP8502652
Non disponible
17
Nut M11X1 (H=7,5)
AP8502435
Non disponible
18
Clutch push rod D13
AP8502836
Non disponible
19
Gasket
AP8502687
Non disponible
20
Bush
AP8502613
Non disponible
21
Sliding coupling 1-2 spd.
AP8502253
Non disponible
22
Outside circlip D18
AP8501471
Non disponible
23
Blue steel washer D18x30
AP8502500
Non disponible
24
Sliding coupling 3-4 spd.
AP8502257
Non disponible
25
1st wheel gear
AP8502161
Non disponible
26
2nd wheel gear
AP8509880
Non disponible
27
3rd wheel gear
AP8509881
Non disponible
29
Driven shaft
AP8509879
Non disponible
30
Outside circlip D15
AP8501469
5,04€ Prix unitaire TTC
31
Washer d.15
AP8502494
Non disponible
32
Washer d.22
AP8502522
Non disponible
33
Oil seal D12x22x7
AP8509180
Non disponible
34
Locating dowel
AP8502810
Non disponible
35
Neutral indicator switch
AP8507439
Non disponible
36
Oil plug seal D8x14
AP8502759
Non disponible
37
Pinion Z=14
AP8207034
Non disponible
37
Pinion Z=10
AP8207030
Non disponible
37
Pinion Z=12
AP8207032
Non disponible
37
Pinion Z=11
AP8207031
Non disponible
37
Pinion Z=13
AP8207033
Non disponible
37
Pinion
AP8207035
Non disponible
38
Pin
AP8502823
Non disponible
39
Washer d.10
AP8502486
Non disponible
40
Fork
AP8501969
Non disponible
41
Shift cam
AP8509883
Non disponible
42
Pin
AP8502819
Non disponible
43
Int. notched washer D7
AP8502473
4,24€ Prix unitaire TTC
44
Nut M7x5,5
AP8502414
Non disponible
45
Ball
AP8502653
Non disponible
46
Spring
AP8502343
Non disponible
47
Pin retainer
AP8502806
Non disponible
48
Screw M6x50
AP8502570
Non disponible
49
Oil drain hex screw M8x10
AP8502586
Non disponible
50
Copper washer
AP8508556
Non disponible
51
Clutch housing, complete Z=16/61
AP8508572
Non disponible
52
Plate
AP8501923
Non disponible
53
Screw with washer M4x10
AP8502559
Non disponible
54
Springholder plate
AP8508543
Non disponible
56
Metallic clutch disc
AP8508544
Non disponible
57
Springholder plate
AP8508545
Non disponible
58
Nut M14x1,25x6
AP8502432
Non disponible
59
Adjuster screw M14x1,25
AP8502533
Non disponible
61
Screw
AP8508554
Non disponible
62
Clutch spring 4 disk
AP8502328
Non disponible
63
Nut M9x1
AP8502419
Non disponible
64
Clutch disks
AP8222187
Non disponible
65
Secondary shaft cpl.
AP8509901
Non disponible
66
Gear box assy 3 speeds
AP8509882
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
