par

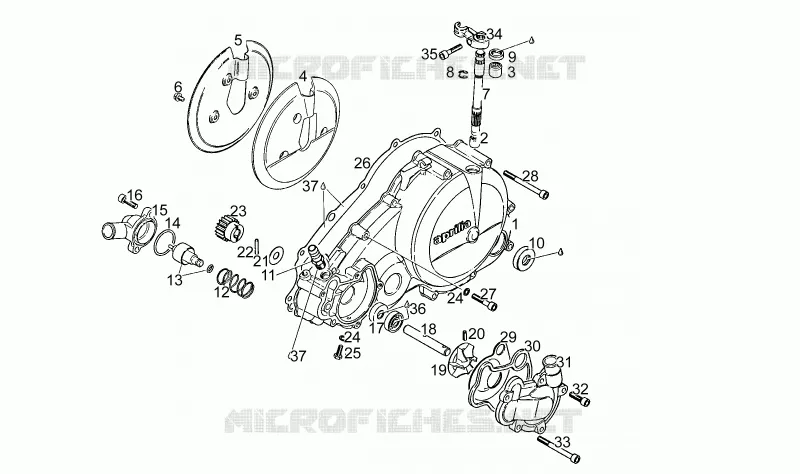

Couvercle embrayage
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
1
Complete clutch cover
AP0210378
Non disponible
2
Roller cage 8x12x8
AP0232275
Non disponible
3
Roller cage 12x16x10
AP0232480
Non disponible
4
Acoustic insulation panel
AP0260300
Non disponible
5
Panel support
AP0275030
Non disponible
6
Special TE screw
AP0841680
Non disponible
7
Clutch shaft Z=11
AP0237022
Non disponible
8
Circlip
AP0845390
Non disponible
9
Oil seal 12x18x4,5
AP0250992
28,56€ Prix unitaire TTC
10
Oil seal 12x28x7
AP0250450
Non disponible
11
Joint
AP0840445
Non disponible
12
Spring
AP0239140
Non disponible
13
Thermostat 70°
AP0222317
Non disponible
14
O-ring
AP0430590
Non disponible
15
Thermostat place
AP0222300
Non disponible
16
Hex socket screw
AP0241932
Non disponible
17
Oil seal 10x26x7
AP0230195
28,18€ Prix unitaire TTC
18
Water pump shaft assy.
AP0237040
Non disponible
19
Impeller
AP0222270
Non disponible
20
Pin 4x16
AP0229280
Non disponible
21
Thrust washer 10,1/25/1
AP0227680
Non disponible
22
Pin 4x19,8
AP0232420
11,27€ Prix unitaire TTC
23
Water pump gear Z=18
AP0234620
Non disponible
24
Gasket ring 6x10
AP0230415
Non disponible
25
Hex screw
AP0240912
Non disponible
26
Gasket
AP0230581
Non disponible
27
Hex socket screw
AP0840882
Non disponible
28
Hex socket screw
AP0241262
Non disponible
29
Water pump shield
AP0222290
Non disponible
30
Gasket
AP0230330
Non disponible
31
Water pump casing
AP0222214
Non disponible
32
Hex socket screw
AP0241932
Non disponible
33
Hex socket screw
AP0240372
Non disponible
34
Clutch relese shaft
AP0248305
Non disponible
35
Hex socket screw
AP0840862
Non disponible
36
Molykote 111 100gr.
AP0897161
Non disponible
37
Loctite (orange) 574
AP0899784
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
